Battery aluminium foil from China Manufacturer

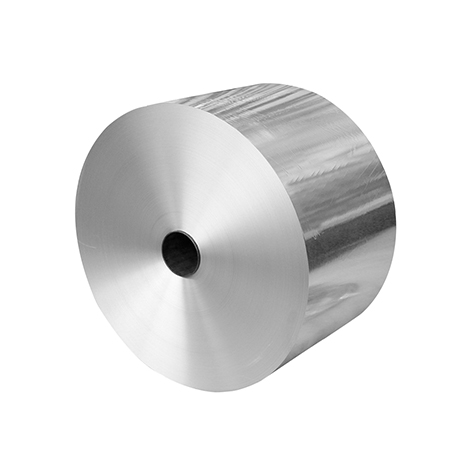

Battery aluminium foil

Alloy：1235/1060/1070
Temper：O,H18,H14,H24,H12,H22
Thickness:0.01-0.05
Width：20-1600mm
Coil ID：76mm，152mm
Coil OD:per customer’s request
Certificated:ISO9001:2015,SGS,SABER

Introduction

DATA

Advantage

Related Products

Introduction

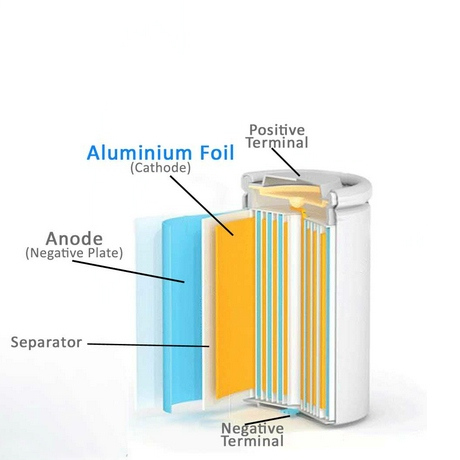

Battery foil is a kind of material used for making current collector of lithium ion battery. It is mainly made
of aluminum alloy 1235,1060 and 1070,and its' commonly used thickness is between 10~50 μ m.With
the progress and development of lithium ion battery industry, battery foil is developing in the direction of
high purity aluminum on adoption of alloy.

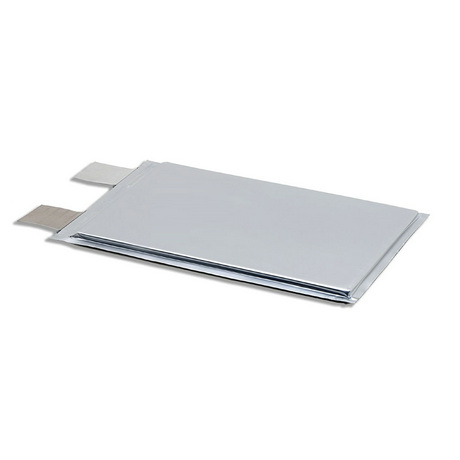

Battery soft package foil is applied to soft package lithium battery, polymer lithium battery and other types of lithium battery, battery soft package foil is in the liquid lithium ion battery covered with a layer of polymer shell.

Soft package battery in the structure of aluminum foil packaging, in the event of safety risks in the case of soft package battery will only blow apart, unlike the steel aluminum shell cell that will explode.

DATA

Alloy	State	Thickness tolerance(MM)	Width tolerance(MM)	Pipe core specification(MM)	Tensile strength/Mpa	Elongation/%	Dyne value(N/M²)

1235	H18	0. 012-0. 016	±3%	Φ76. 2 Φ152. 4	170-200	≥1. 2	≥31*10-3
		0. 0161~0. 020				≥1. 4
		0. 021-0. 035				≥1. 6
1060	H18	0. 012~0. 016			165~190	≥1. 2
		0. 0161-0. 020				≥1. 4
		0. 021-0. 035				≥1. 6
1070	H18	0. 012-0. 016			≥180	≥1. 2
		0. 0161-0. 020			≥180	≥1. 4
		0. 021~0. 035			≥170	≥1. 6

Advantage

Aluminum products of kailong meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.

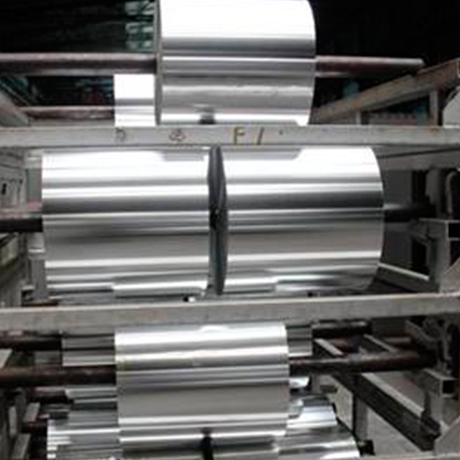

There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.

Advantage

1. Aluminum foil has better physical functions, extending the service life of lithium-ion batteries.
2. The material is soft and easy to process, reducing the cost of pole piece manufacturing.
3. Protect the current collector and prolong the service life of the battery.

Mobile battery

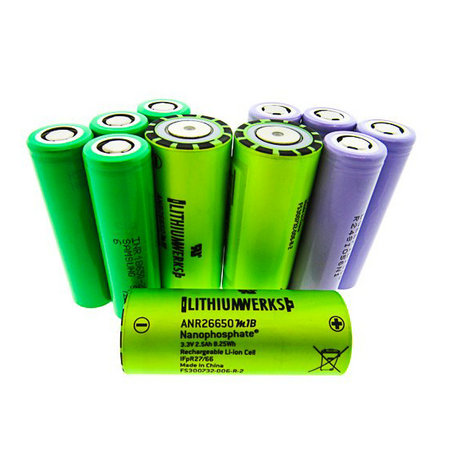

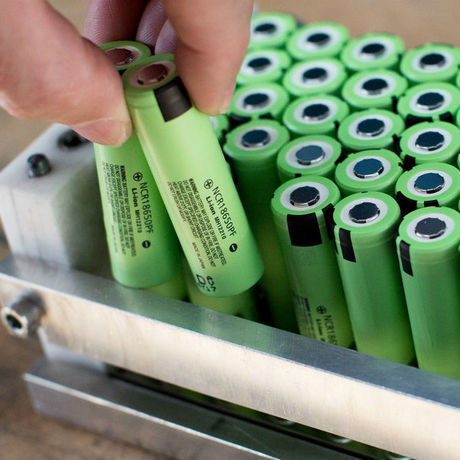

Lithium battery

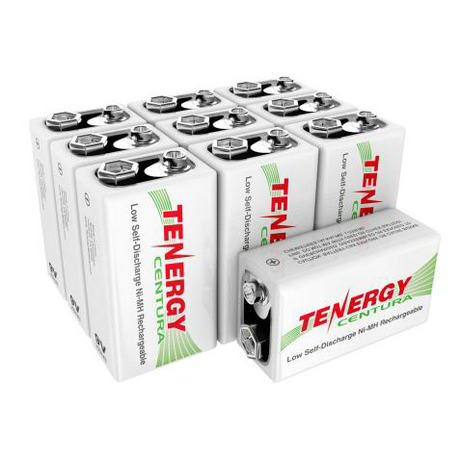

Rechargeable square battery
