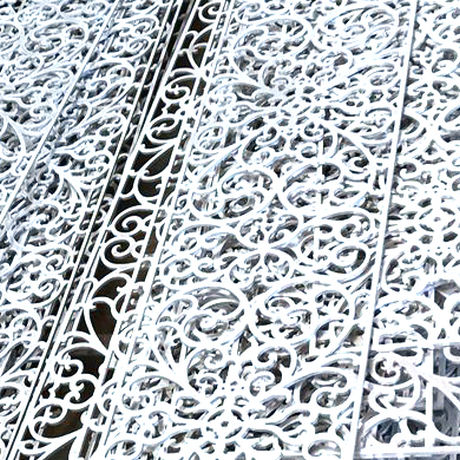

 Aluminum hollow carved plate
 Aluminum hollow carved plate
 Aluminum hollow carved plate
 Aluminum hollow carved plate
Aluminum hollow carved plate

Aluminum hollow carved plate

Color: RAL,Pantong or customized color
Hole:minimum 1.0mm
Surface Treatment :Anodized/PVDF Spraying/Powder/Prepaint
Coating Brand:PPG/Akzonobel/Nippon/Sunload
MOQ:1 pcs for sample, 100 square meter
Advantage :Various Colors,Fashion Designed
Simple Installation,Low Maintenance cost
Protect from Sun light,Environmental Friendly
Fire Proof,Sound absorption
Tickness Range:0.5mm to 20mm available
Width Range:30mm to 1800mm
Drawing:50000m2 per month
Waranty:15 Years


Share:
Introduction

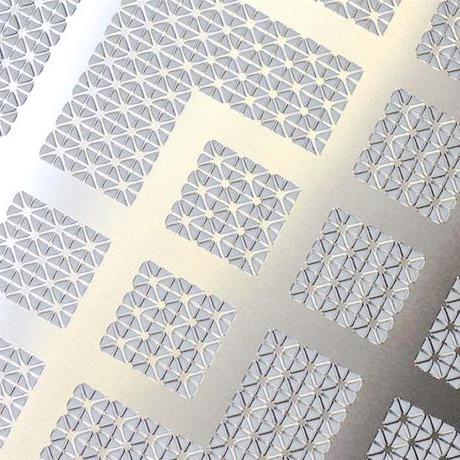

Perforated Aluminum Sheet is a sheet product that has been punched with a wide variety of hole sizes and patterns providing an aesthetic appeal. Perforated aluminum sheet offers savings in weight, passage of light, liquid, sound and air, while providing a decorative or ornamental effect. Perforated aluminum sheets are corrosive resistant and commonly used in interior and exterior design.
DATA
Size 1) Thickness: 0.1mm~12mm  2)Mesh Length:1.8m~2.44m
3)Mesh Width:0.8m/1.22m   4)Perforated area percent: from 7% to 83%
Hole forms Diamond,round,square,rectangular ,triangle,hexagon,hexagonal,slotted,oval,club,cross,louver etc.
Surface Treatment Hot dipped galvanized/Cold dipped galvanized/Paint Spraying/Coated/etc.
Color Golden, silver, red, black, white, etc.
Margin No margin,common margin,special requirement
Hole dia*pitch(mm) Customize,such as:2.0*5.0,3.0*6.0
Dimensions(mm)
(length*width*thickness
Customize,such as:1000*2000*1.0,1250*2500*2.0..

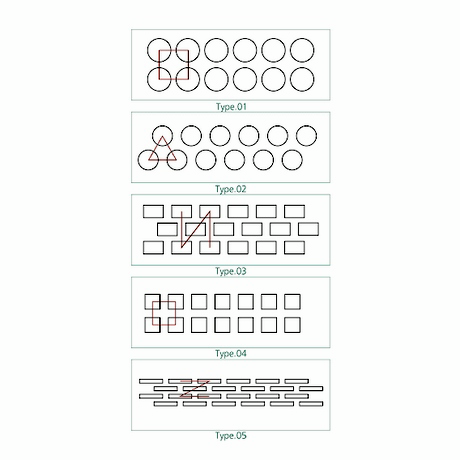

Perforated pattern Straight Staggered:45 degree,60degree,120degree
Fabrication Bend,coil,etc
Material 1060.3003.5052.6061
Features corrosion resistant, long-lasting,winding resistant, smooth-surface.
Sample time About 7 days
Delivery time 20-65 days after payment
Payment terms T/T(30% deposit after confirm the order, 70% balance paid before shipment )
Packing 1.Pallets
2.Other special package according to customers’ requirements.

Hole Size of Aluminum Perforated Plate :

Hole Diameter Staggered Centers Sheet Thickness Open Area
0.045″ 1.14mm 0.066« 0.033-0.039″ 0.84-0.99mm 37.00%
1/16″ 1.59mm 3/32″ 0.027-0.033″ 0.68-0.84mm 41.00%
1/16″ 1.59mm 1/8″ 0.027-0.066″ 0.68-1.68mm 23.00%
5/64″ 1.98mm 1/8″ 0.027-0.053″ 0.68-1.35mm 35.00%
0.081″ 2.06mm 1/8″ 0.053-0.066″ 1.35-1.68mm 38.00%
3/32″ 2.38mm 5/32″ 0.053-0.066″ 1.35-1.68mm 33.00%
1/8″ 3.17mm 3/16″ 0.027-0.127″ 0.68-3.23mm 40.00%
5/32″ 3.97mm 3/16″ 0.027-0.066″ 0.68-1.68mm 63.00%
3/16″ 4.76mm ¼” 0.027-0.127″ 0.68-3.23mm 50.00%
1/4″ 6.35mm 3/8″ 0.033-0.111″, 0.25″ 0.84-2.82mm, 6.35mm 40.00%
3/8″ 9.52mm ½” 0.053-0.082″, 3/16″ 1.35-2.08mm, 4.76mm 51.00%
3/8″ 9.52mm 9/16″ 0.059″, 0.119″ 1.50mm, 3.02mm 40.00%
1/2″ 12.70mm 11/16″ 0.033-0.127″, 3/16″ 0.84-3.23mm, 4.76mm 48.00%
1/4″ Hex 6.35mm Hex 0.285 0.027-0.033 0.68-0.84mm 76.00%
3/8″ Sq. 9.52mm Sq. Cane« 0.053-0.066″ 1.35-1.68mm 51.00%

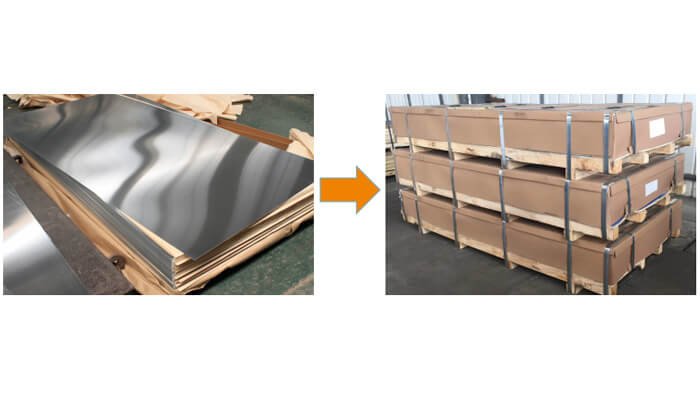

Packaging and Delivery
Aluminum products of kailong meet the export standard. Plastic film and brown paper can be covered at customers’ need. What’s more, wooden case or wooden pallet is adopted to protect products from damage during the delivery.

There are two kinds of packaging, which is eye to wall or eye to sky. Customers can choose either of them for their convenience. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
Application
1.Protective covers of the mechanical equipment
2.Sound insulation board
3.Ceilings
4.Speaker grille
5.The dust covers of food stuff, feeds and mine
6.The mesh of the shelves in the shopping mall
7.The punched sheet of granaries and so on
Building panel
Building panel
Wall decoration
Wall decoration
