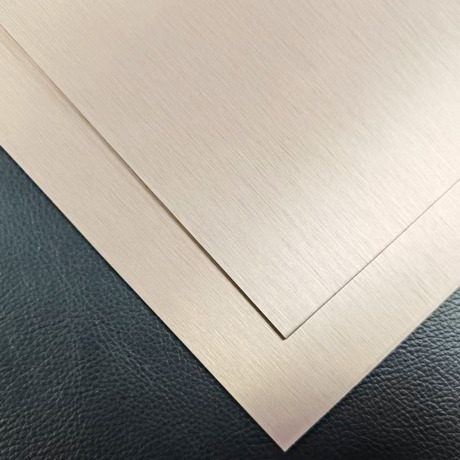

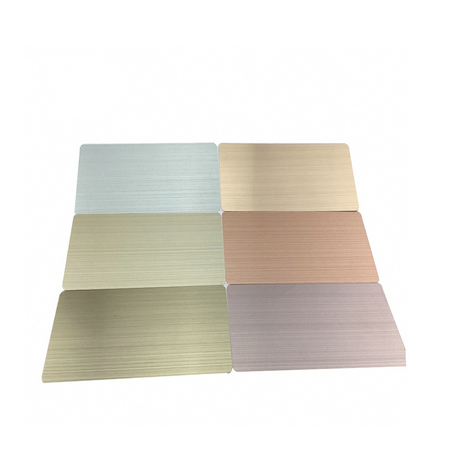

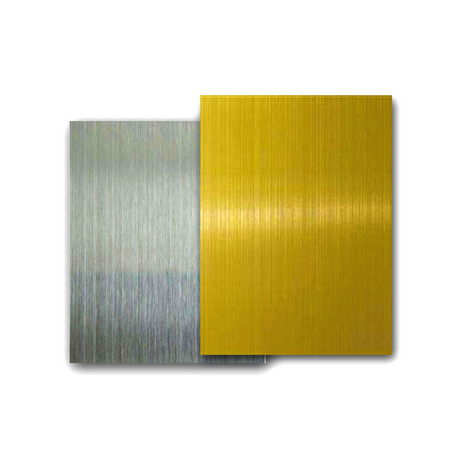

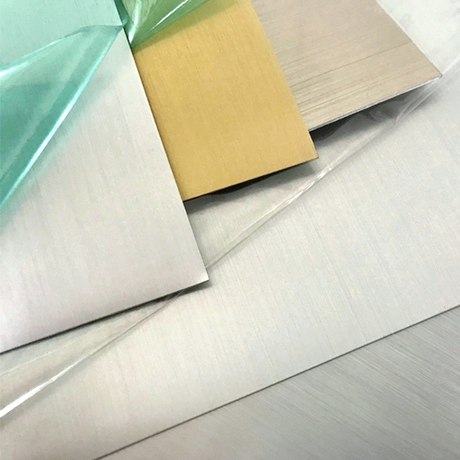

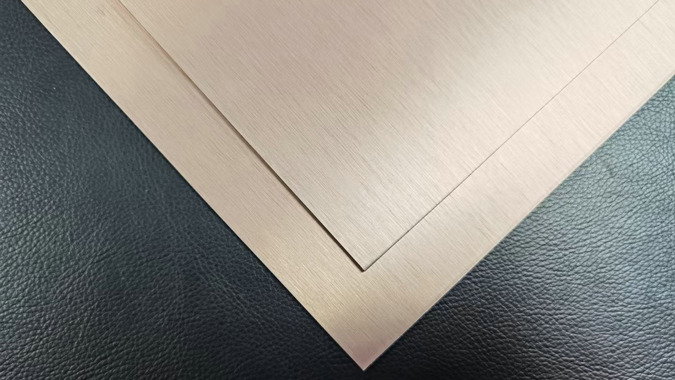

Brushed aluminum plate

Brushed color coating aluminum plate

Treatment process: aluminum coil cleaning passivation, drawing anode surface treatment

Thickness: 0.4mm- Maximum thickness: 5.0mm

Tensile strength: 115-125N/m㎡

Yield strength: 150-165N/mm

Elongation: 3-5%

Minimum quantity: 500kg for aluminum color, 1000kg for other colors

Application: LED aluminum substrate, building materials, auto parts, electronic products,

Home appliances, bags, water tank panel...Etc.

Send Email

Chat Now

Introduction

DATA

Application

Related Products

Introduction

Processing technology: aluminum plate anodic oxidation 、aluminum plate wire drawing
Thickness: 0.4-5.0mm Width: 50-1220mm
Length: 200-4000mm Tensile strength:115-125N/mm2
Yield strength: 150-165N/mm2 Extend rate: 3-5%
Minimum order:500kg other colors 1000kg
Service features: provide A4 samples

Wire drawing aluminum coil is a manufacturing process of repeatedly scraping aluminum sheet out of line with sandpaper. The process is mainly divided into three parts: deester, sand mill and water washing.In the wire drawing process of aluminum coil, the special skin film technology after anodizing can make a skin film layer containing the metal composition on the surface of aluminum coil, and clearly show every tiny silk mark, so that the fine hair luster can be spread out in the metal matte.
Performance advantage

1. Compared with traditional oxidation, alkaline resistance is improved by 10 times;

2. UV resistance to grade 5 weather resistance;

3. Kailong aluminum oxide sheet film thickness of 5μm salt spray test up to 300 hours

DATA

Brushed color coated aluminum coil
Alloy No.	Thickness (mm)	Width (mm)	Temper
A1050,A1060, A1070,A1100,A1235,A1245	0.2-3.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A3003,A3004,A3105	0.2-4.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A5052,A5083,A5754,A5005	0.2-4.0	20-1900	O,H12,H22,H14,H24,H16,H26,H18
	4.0-12.0	1000-1900	H111,H112
A6061,A6082,A6063	0.8-3.0	20-1900	O
A8011,A1145,A1235	0.005-0.2	20-1700	O,,H18,H24
ID	76mm,152mm,200mm,300mm,505mm
Packing : Export wooden pallets, wooden case
Standards:ASTM-B209. EN573-1, GB/T3880.1-2006
Quality of material: totally free from defects like white rust, oil patches, roll marks, edge damage, camber, dents, holes, break lines, scratches and free from coil set
Application : Mainly used insigns, billboards, building exterior decoration, bus body, high-rise buildings and factories wall decoration, kitchen sink, lamp, fan leaves, with pieces of electronic, chemical equipment, sheet metal processing parts, deep drawing or spinning hollowware, welding parts, heat exchangers, bell surface and disk, plate, kitchenware, decorations, reflective devices, ect
MOQ	2.5 tons
Payment term:	TT,L/C
Delivery Time	15 days after 30% TT payment or receiving L/C copy
Kind attention : Specifications can be customized as the customer’s requirements.

Packaging and Delivery

1. Kailong A series products are first oxidized and then directly stamped, the oxide layer does not burst

2. The whole series of Kailon products can effectively avoid the situation of protective film degumming

3. Kailong L series products customers can directly bond LED substrate, reduce customers' wire drawing and cleaning links

4. The first pass rate of kailong L series products is 99.99%

5. The use of automatic equipment to eliminate human error to ensure the consistency of product quality

6. Organize the effective implementation and implementation of a documented quality management system in accordance with IS09001:2000 standard

Application

Widely used in brushed aluminum plastic board, fire board, aluminum photo frame, fine cabinets, fine doors and Windows, stickers, signs, lighting, indoor and outdoor decoration, household appliances, bags, gifts, furniture, electronic consumer goods and other fields.

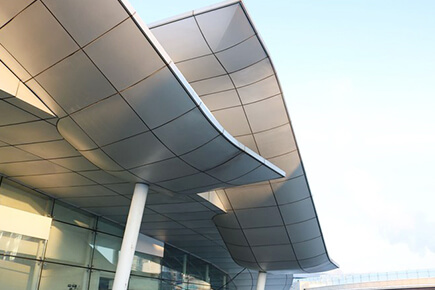

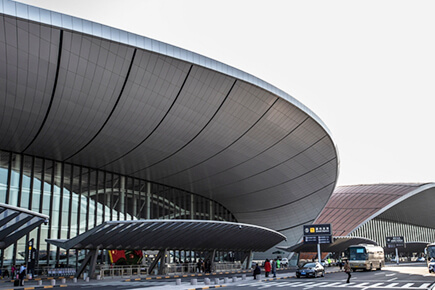

Building panel

Outdoor

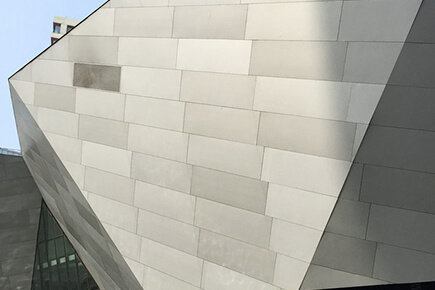

Wall decoration
