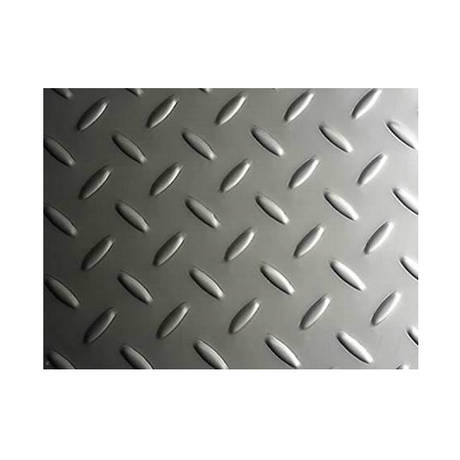

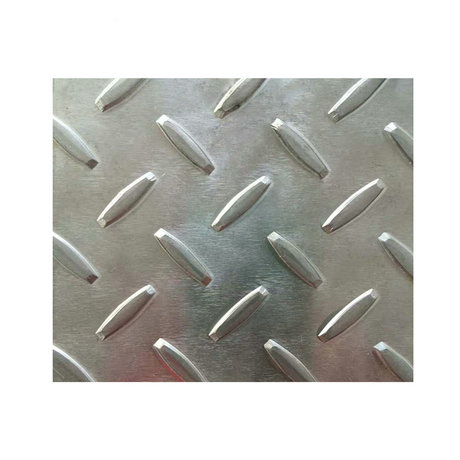

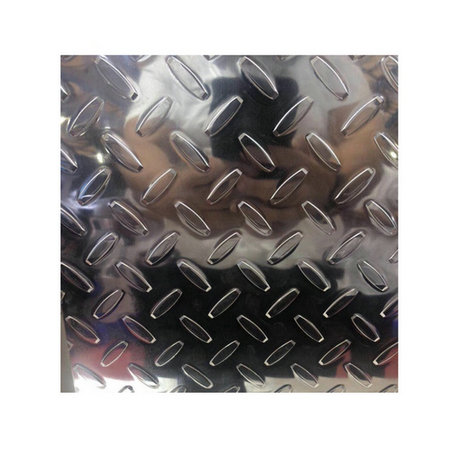

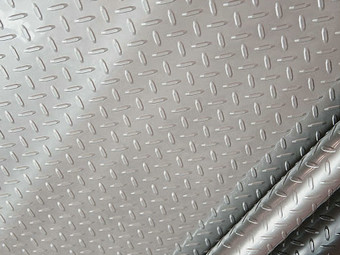

Lentil pattern from China Manufacturer

Introduction

Product Description
1) Alloy we supply for Stucco Embossed Checkered pattern aluminum shee/plate:
1050/1060/1070/1100/3003/5052/5083/5754, etc.

Including: 5bars/2bars/diamond/orange, etc.

For the above-mentioned alloy, you may be interested in:
CC aluminum sheet: Means Continuous Casting coil, it can not be used for deep drawing and anodising, but it can be bend over 90 degrees.
DC aluminum sheet: Means Direct casting coil, it can be used for deep drawing and anodising.

2) Size we supply:
Thickness: (0.15-6.0)mm,
Width: 1000/1220/1250/1300/1350/1500, and other special width.
Length: 2000/2400/2440/2500/3000/4000/5000/6000mm, etc.
Thicnk tolerance: +/-0.03mm

3) Temper:
HO/H14/H24/H16/H18/H19/H32/H111/H112, etc.

4) Packing:
For Sheet Packing:
2-2.5mts per pallet, standard international export packing,

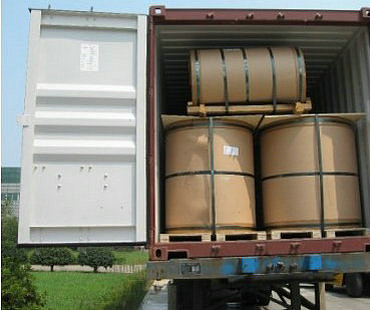

For Coil Packing:
Eye to wall or Eye to Skype packing, 2-3mts per coil or 5-7mts per coil,
Coil ID: 505MM/508MM

product data

emper	O,H14,H24,H28,H32,H34,H111,H112,etc
Tensile strength	190 Mpa
Strength	140 Mpa
Elongation	22%
Hardness	60 HB
Denseness:	2.69 g/cm
Welding capacity	nice
Cutability	nice
Anti-corrosion	good
Conductance	50- 63% IACS

Mechanical property

Alloy plate	Bend	Tensile strength(Mpa)	Elongation(%)
3003 H114	1/2 closed	164-170	13-13.5

3003H114	Si(%)	Fe(%)	Cu(%)	Mg(%)	Cr(%)	Mn(%)	Zn(%)	Ti(%)	Al(%)	Standard
Min	0.145	0.464	0.058	<0.03	<0.005	1.081	<0.03	0.0346	else	GB/T3880-2006
Max	0.159	0.476	0.076	<0.03	<0.005	1.099	<0.03	0.0357	else	GB/T3880-2006

ADVANTAGE

It has very good corrosion resistance and moderate strength.
It is not heat treatable and develops strength by cold working only.
Commonly used in general sheet metal work, garage doors, refrigerator panels, all types of tanks, and toolboxes
3003 is readily machined and is considered as having good machinability.

Application

Aluminum Checker Sheet is a high-cost modern materials, there are many types of furniture in a wide range of uses, such as refrigerators, air conditioners, cars, platforms, packaging pipes, screen skeleton, a variety of hanging beams, table legs, Handle, cable trough and cover, chair, and so on.5-Bar aluminum checker plate is widely applied in transportation, construction, decoration, floor around the equipment, machinery, ship-building and other fields;

Wall decoration

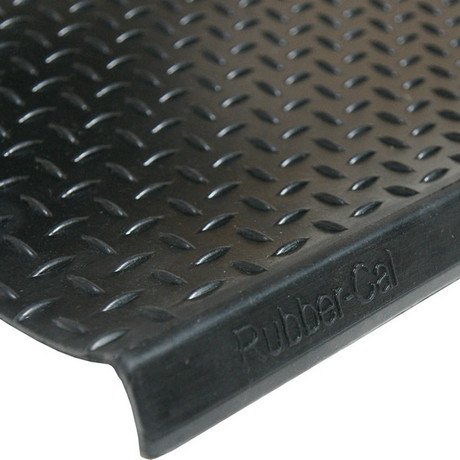

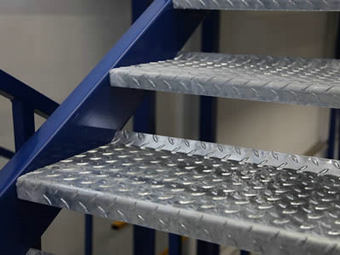

Anti-slip

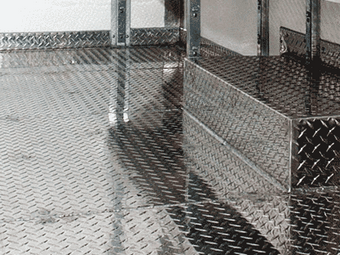

Floor
