Anti-scratch color coated aluminum coil

Embossed color coating aluminum coil

The difference between A non-slip aluminum plate and B roll coated embossed aluminum plate:
A Roll-coated embossed aluminum plate is to process the flat surface of the roll-coated aluminum plate by extrusion into various styles of roll-coated embossed aluminum plate.

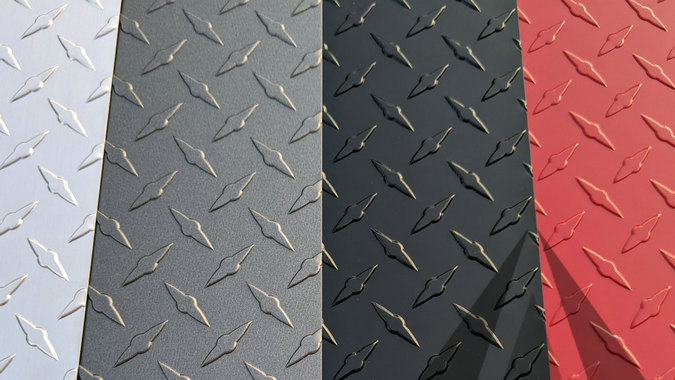

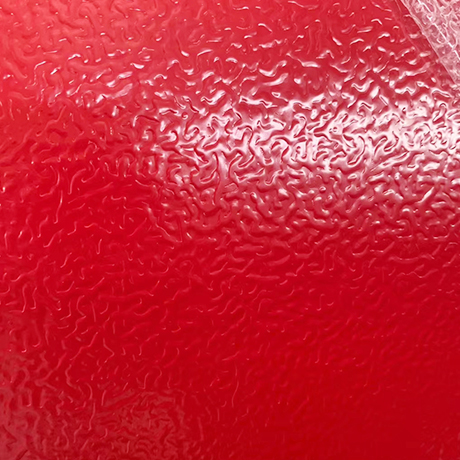

B The non-slip aluminum plate generally has five bars, three bars, pointer type, the thickness is generally 1-10mm, the width is: 1000-1500mm, and the length is 2000-3000mm. The embossed aluminum plate is generally orange peel pattern, diamond pattern, bean pattern, etc., the thickness is: 0.1-0.9mm, the width is: 500-1200mm, generally is aluminum coil.

Send Email

Chat Now

Introduction

DATA

Application

Related Products

Introduction

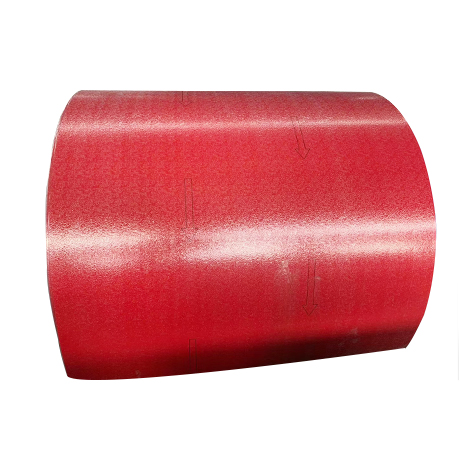

An aluminum painted emboss coil is a pattern aluminum emboss plate coil with stucco, diamond, ripple or hammer patterns formed on the surface after calendering (roller with pattern patterns) and coating (roller coating, spraying, etc.) processing on the basis of smooth aluminum coils. It is widely used in packaging, construction, curtain wall, decoration and so on. Kailong colour emboss aluminum coil products include fluorocarbon aluminium embossed painting coils (plates), polyester aluminium embossed painting coils (plates); peelable aluminium embossed painting coils (plates); nano anti-dirty self-cleaning coated aluminum coils (plates) ); high scratch-resistant coated aluminum coil (plate); painting aluminium checker plate (rolls), etc.Alloys include 1100, 3003, 3004, 3005, 3105, 5182, 5002, 5005, etc., the coating thickness is 0.07mm-2.0mm, and the width 30mm-1600mm. The embossed aluminum painted coil can be divided into pieces, strips, and embossing.

DATA

Product Name	Embossed Aluminum Coil/Sheet
Alloy/Grade	1000 Series,3000 Series, 5000 Series
Temper	O-H112
Thickness	0.13mm-6.5mm
Width	100mm-1600mm
Length	As per your requirements
Application	Construction , Flooring , etc.
Surface treatment	Embossed
Pattern	Classic , altered, Diamond ,1-5 bars ,checker, etc.
Tolerances	As per your requirements
Delivery time	7-30 days after order confirmation
MOQ	2 ton
Coil ID	As per your requirements
Loading Port	China Main Port
Price terms	FOB, CIF, CFR, CNF, Etc.
Payment terms	L/C,D/A,D/P,T/T , West Union, Money Gram, Etc.

Advantage

1)Light

2)Corrosion-resistant

3) The mechanical intensity is high

4) The conducting rate is high

5)The reflecting rate is high

6) Anti-interference, but the electromagnetic wave of the shielding

7)Fine heat dissipation performance

Application

Building panel

Roofing

Wall decoration
