Aluminum Checker Plate: From Five-Bar Anti-Slip to Diamond Pattern

In the industrial and architectural sectors, both performance and aesthetics of materials are crucial. Aluminum Checker Plate stands out as a remarkable material that combines functionality with visual appeal. By embossing raised patterns on the surface, it retains the advantages of aluminum—being lightweight, corrosion-resistant, and strong—while achieving excellent anti-slip properties.

Main Pattern Types: Five-Bar and Diamond Plate

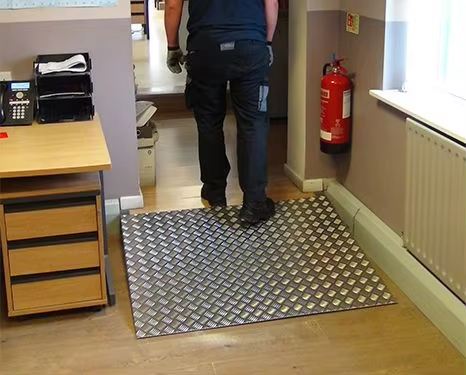

1. Five-Bar Aluminum Plate
This is one of the most classic and widely used types of anti-slip aluminum plate. Its surface features five distinct raised ribs—three wider ones oriented in the same direction and two narrower ones—creating a highly effective directional anti-slip effect.
Features: Excellent anti-slip properties, high load-bearing capacity, resistance to dirt and liquid retention, and easy cleaning. The pattern also acts as a stiffening rib, significantly enhancing the plate's rigidity.
​​​​Primary Uses: Widely used in industrial platforms, flooring, treadplates, truck anti-slip flooring, and cold storage floors—any application demanding high strength and safety.

2. Diamond Plate / Aluminum Tread Plate
Also known as aluminum tread plate, it is named for its surface covered with uniformly distributed diamond-shaped raised patterns. This classic design offers both anti-slip functionality and decorative appeal.
Features: Good anti-slip performance that is consistent in all directions. It boasts a stylish appearance, often associated with industrial and modern aesthetics.
Primary Uses: Commonly found in architectural decoration (e.g., wall cladding, ceilings), ship decks, vehicle steps, areas around mall escalators, and various equipment casings and cabinets.

Common Specifications and Selection Reference

Common Thicknesses:
Five-Bar Plate: Has a broad common thickness range, from 2.0mm, 2.5mm, 3.0mm to 4.0mm, 5.0mm, 6.0mm and beyond, catering to various load-bearing requirements.
Diamond Plate: Often used for decoration and medium-to-low load-bearing, with common thicknesses like 1.5mm, 2.0mm, 2.5mm, 3.0mm.

Common Alloys :1060, 3003, 5052 are the most commonly used aluminum alloys for patterned plates.Among these, Alloy 5052, containing magnesium, offers superior corrosion resistance (especially against seawater) and strength, making it the preferred choice for high-standard tread plates and five-bar anti-slip plates.


Whether it's the highly functional Five-Bar plate or the balanced Diamond plate, Aluminum Checker Plate, with its irreplaceable advantages, has become an indispensable material in modern engineering and design.As a professional aluminum supplier, we offer a variety of alloys, thicknesses, and patterns. We can provide the most suitable product selection and technical advice for your specific application needs.
