Color Coated/Pre-painted Aluminum Coil

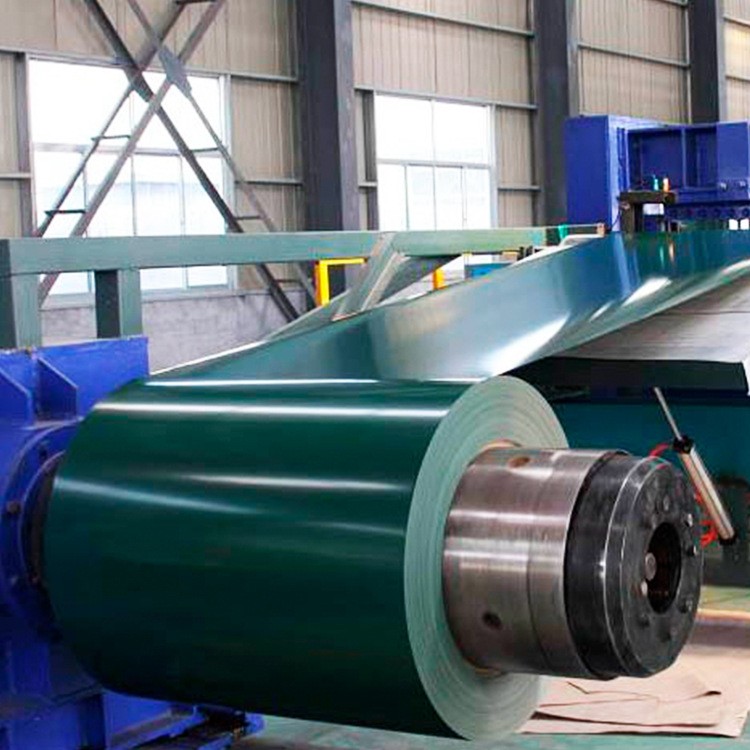

Color Coated Aluminum Coil(pre-painted aluminum coil) is a composite material. It starts with an aluminum coil, which is thoroughly cleaned and then passed through a continuous coil coating line. Here, multiple layers of high-performance paint are applied to both sides via rollers, followed by high-temperature curing. This "coat" not only provides a wide range of colors and textures but also acts as a critical protective barrier for the aluminum underneath.

Core Components: Alloy and Thickness

The performance foundation of this material lies in its metal substrate—the aluminum coil. Commonly used substrates fall into two main categories:

• 1000 Series Alloys (e.g., 1100): High aluminum content, offering excellent formability. They are very easy to deep-draw, bend, and stamp, making them suitable for parts with complex shapes. However, their base strength is relatively lower.

• 3000 Series Alloys (e.g., 3003, 3004): Alloyed with manganese, these are known as rust-proof aluminum. They offer a good balance of strength, formability, and corrosion resistance, making them the most common and versatile choice for outdoor applications like building curtain walls and roofing.

The choice of thickness directly relates to the required strength and cost for the final application:

• Thinner Gauges (e.g., 0.5mm-0.8mm): Lightweight and cost-effective. Often used in areas with low load requirements, such as interior building ceilings, wall decor, and appliance panels (e.g., air conditioner or refrigerator casings).

• Medium Thickness (e.g., 1.0mm-2.0mm): This is the standard range for architectural applications like exterior wall panels and curtain walls. It provides the necessary structural strength and flatness while remaining workable for installation.

• Heavier Gauges (2.0mm and above): Used for applications demanding high rigidity, such as heavy-duty building envelope systems, large signage backplates, or special industrial components.

Key Features and Wide-Ranging Uses

The widespread use of pre-painted aluminum coil stems from several key features:
First, exceptional weatherability. High-quality coatings, especially those based on Fluorocarbon (PVDF) paint, effectively resist UV rays, acid rain, salt spray, and extreme temperatures. This ensures the color remains vibrant and resists chalking for decades, with minimal maintenance.
Second, aesthetic versatility. It can be produced in any standard or custom color and can mimic textures like wood grain, stone, or brushed metal, meeting diverse design needs.
Third, light weight and easy fabrication. Aluminum is inherently light, reducing load on structures. Even after coating, it can be easily cut, punched, and bent, allowing for flexible installation.

These features make it active in many fields:

• The construction sector is its primary market: From the curtain walls and roofs of office towers, airports, and stadiums to interior ceilings, partitions, and column covers, pre-painted aluminum defines much of modern architecture's appearance.

• Appliances and Electronics: It provides a durable, attractive, and mass-customizable surface solution for the casings of refrigerators, washing machines, air conditioners, and electronic devices.

• Transportation: Used for interior panels in high-speed rail and subway carriages, as well as some ship cabin interiors, balancing lightweight needs with fire safety requirements.

• Other Applications: It's also common in furniture, storefronts, and signage systems.

In summary, pre-painted aluminum coil is a functional material that successfully marries the strength of metal with the color of paint. The process—from selecting the right aluminum alloy and thickness to applying a durable coating—is all geared toward meeting practical needs, from aesthetics to longevity. It has become an indispensable surfacing material in modern construction and manufacturing.
